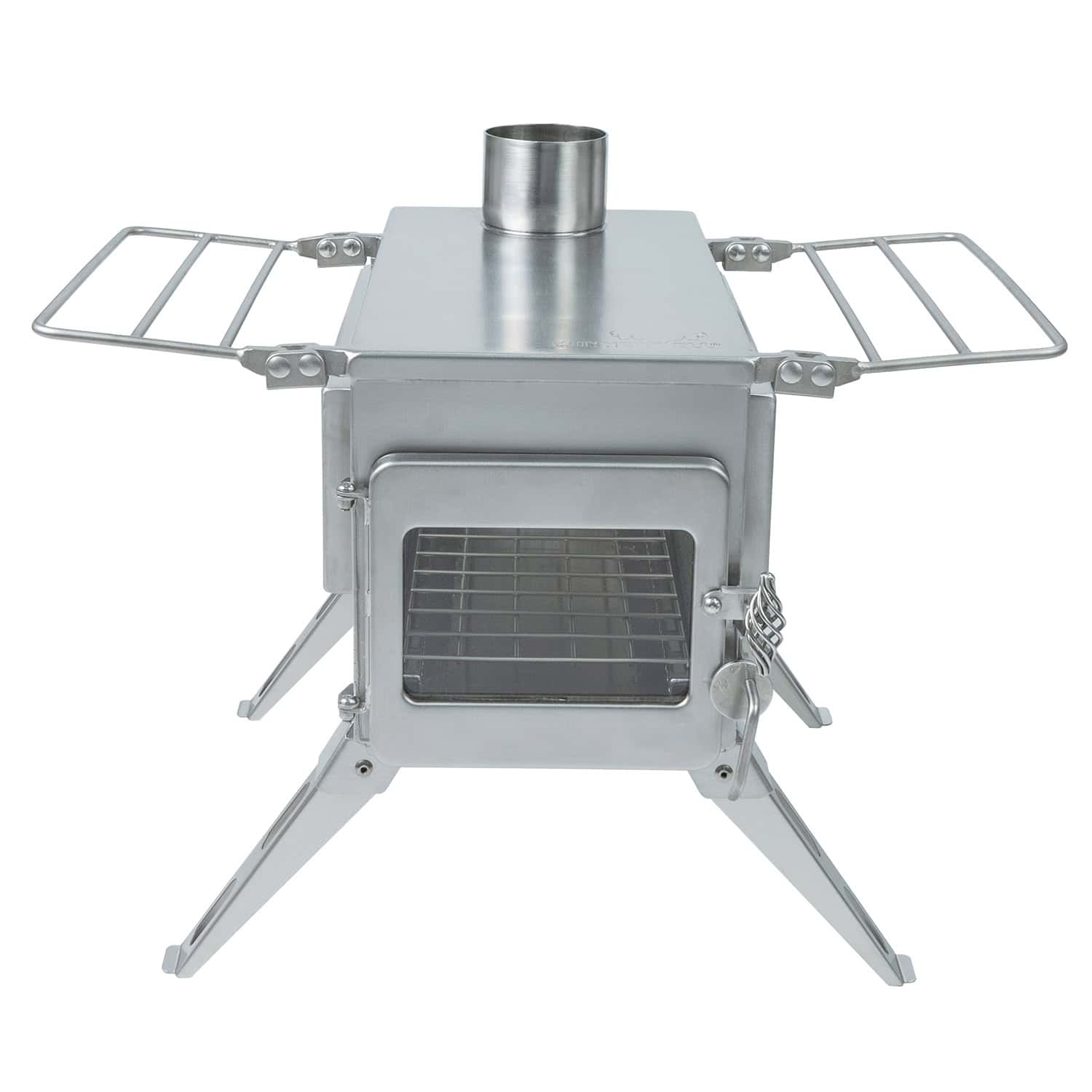

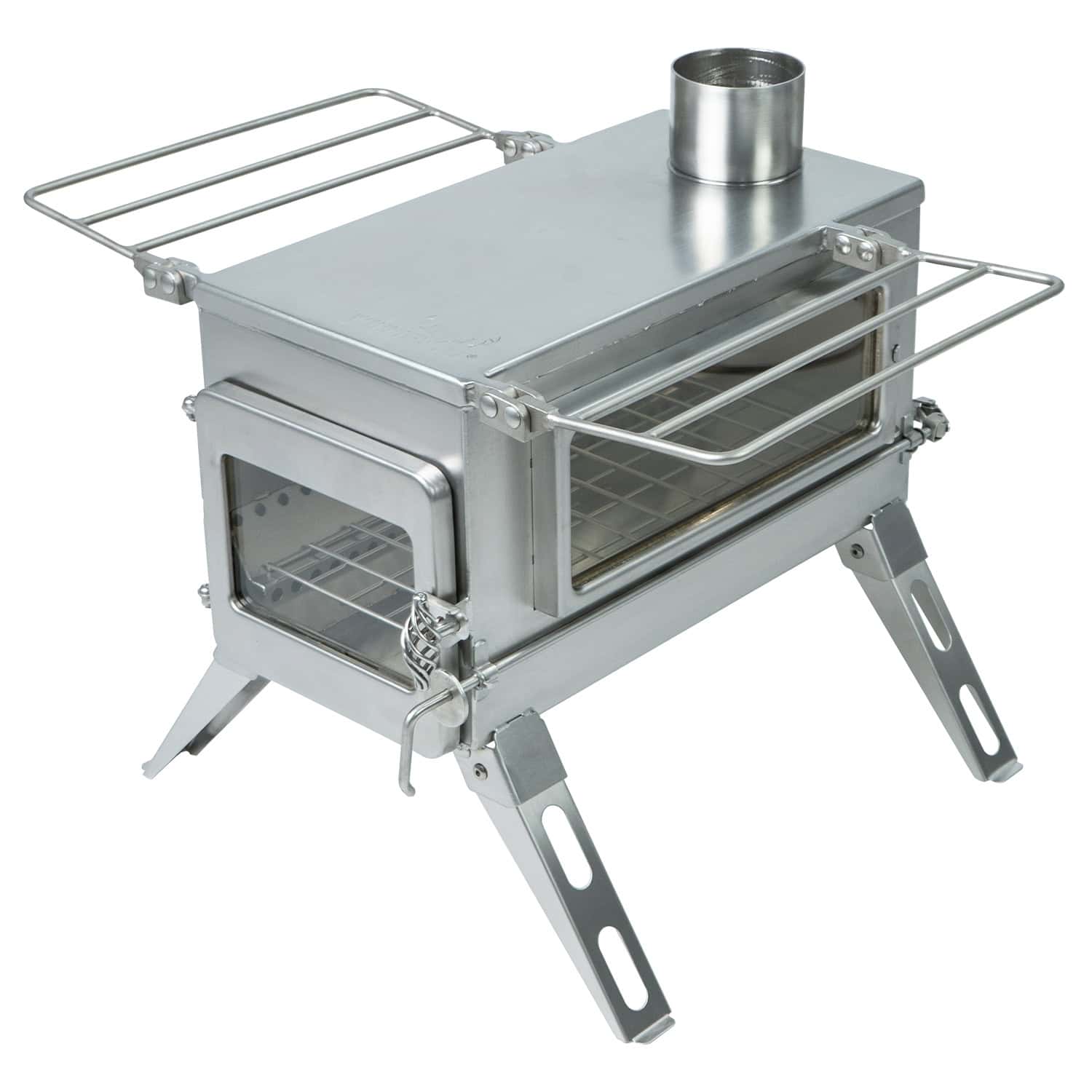

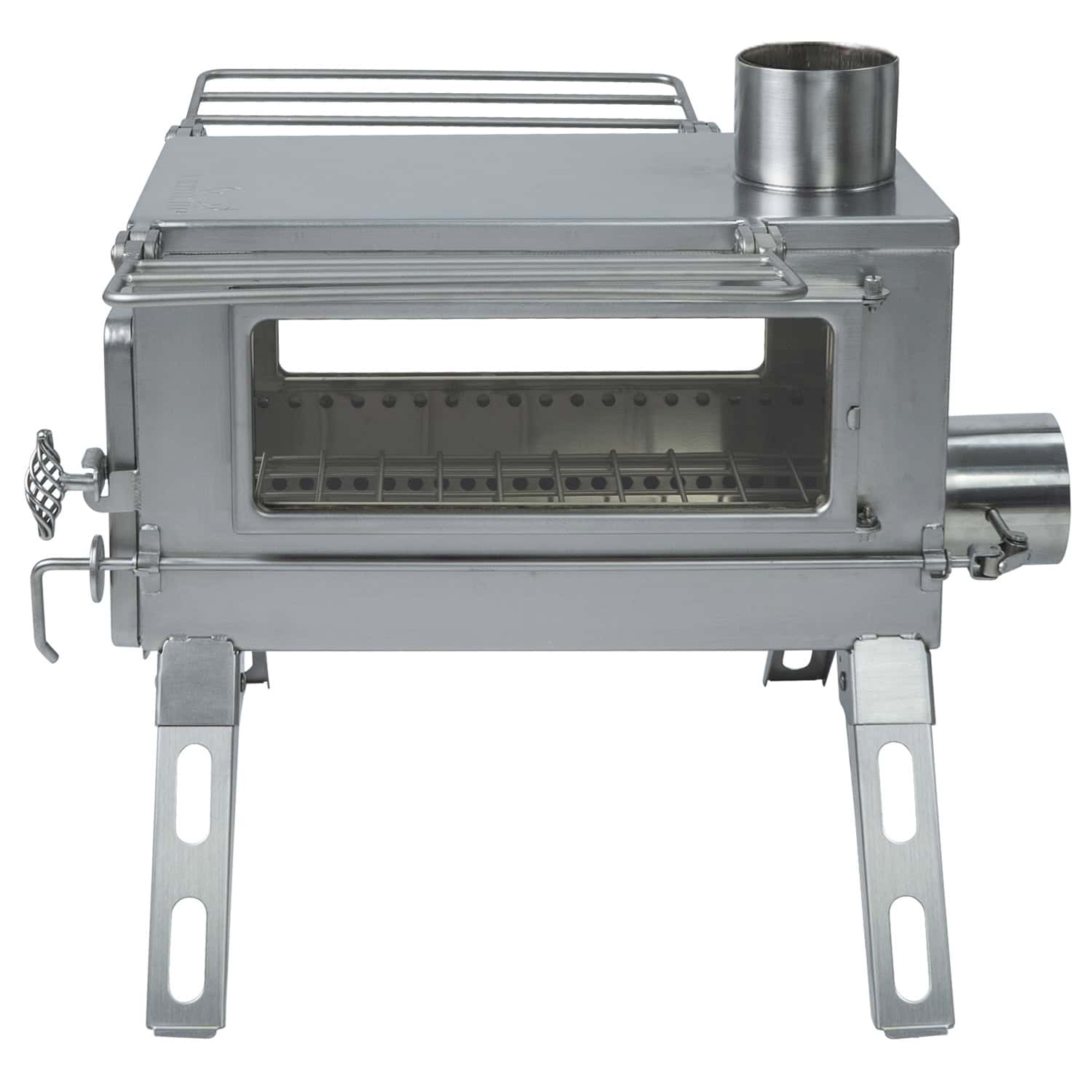

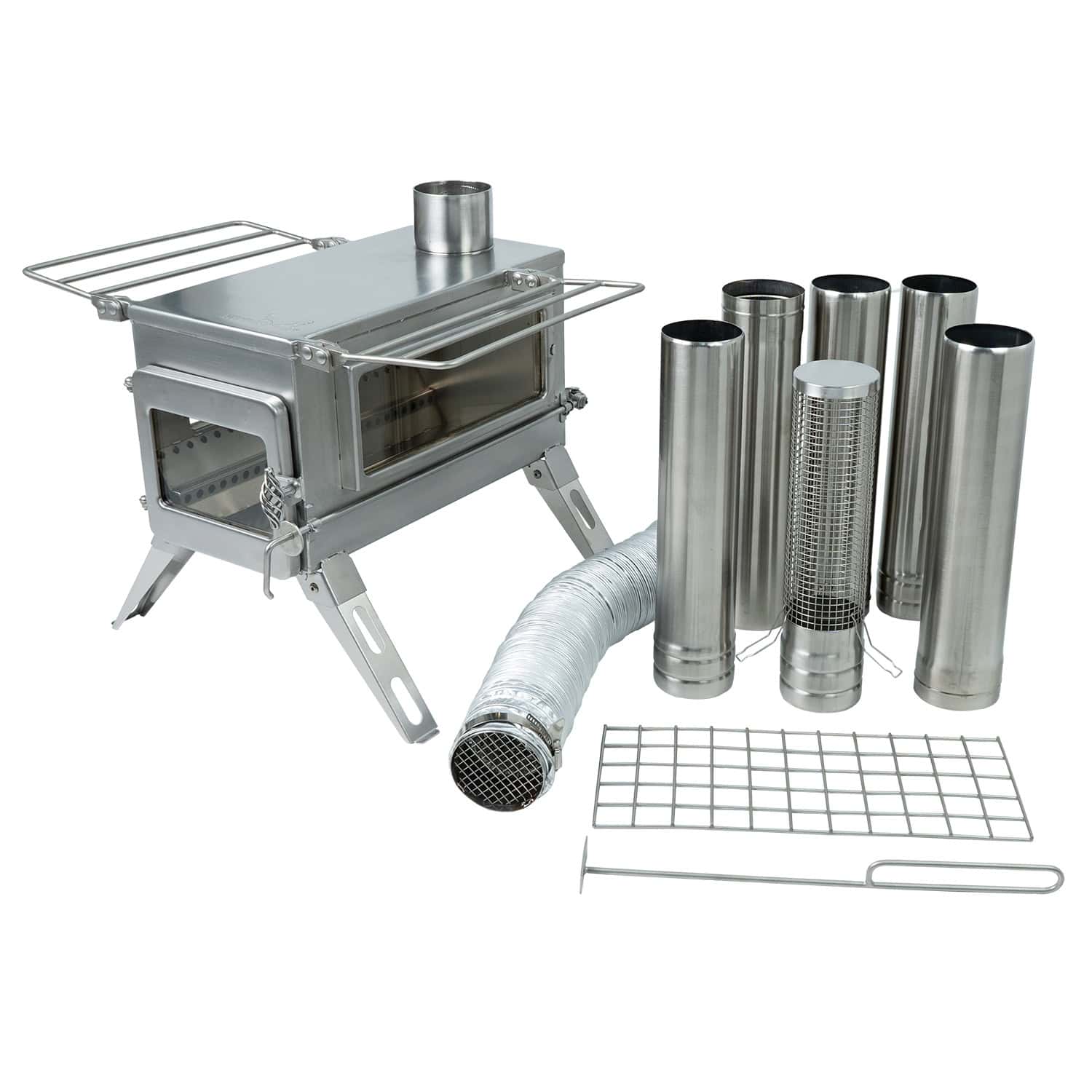

Winnerwell® Nomad PLUS Double View External Air M-sized Wood Burning Tent Stove

£474.99

Winnerwell® Nomad PLUS Double View External Air M-sized Wood Burning Tent Stove – (3” Flue) –  Patented Design

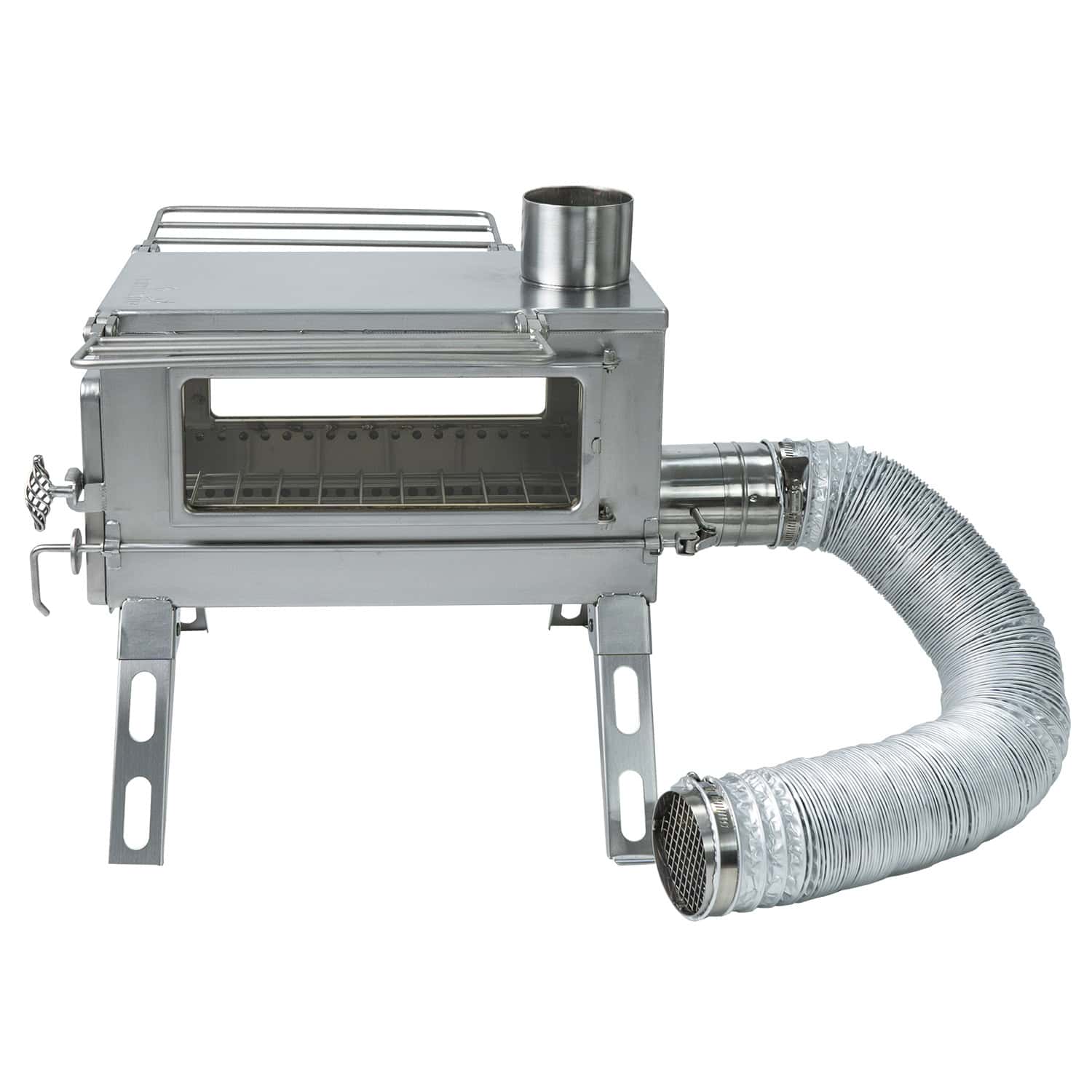

With it’s unique patented design of External Air intake from outside the tent, Winnerwell® Nomad PLUS Double View External Air M-sized Wood Burning Tent Stove brings a new standard of heating efficiency to portable wood burning stoves.

Unlike the front door air intake, an inbuilt external air supply ensures that there’s an unlimited flow of fresh combustion air, which eliminates cold draughts, prevents the stove from consuming the air in tent and the hot air it has created.

A typical stove can consume between 10 to 20 cubic meters of combustion air every hour and an average airtight 4-person tent has a volume of air around 30 to 40 cubic meters, so a stove operating in an airtight and draught-proof tent could quickly consume up the Oxygen in the tent within 2.5 hours and thus present serious problems for the occupants.

The secondary combustion system helps burn off waste gases, to produce more heat and reduces emissions.

*Please note the Medium External Air Stoves are only compatible with 3” Accessories – available separately :  Winnerwell Triple-wall Heat Protector Chimney for External Air M-sized Stove (3” Flue),  Large flashing kit, Medium opener & seal set



Availability: In stock

Optional extras :

Winnerwell Carrying Bag for Nomad/Woodlander External Air M-sized Stove

Winnerwell® Carrying Bag for External Air M-sized Stove

Made from heavy-duty polyester. the Winnerwell® Medium Carrying Bag has a large compartment for the stove, 2 adjustable securing straps on top of the bag (great for holding your triple-wall chimney or similar) and two zipped side compartments for stove accessories and camp gear.

SKU: 910257 Categories: , , ,

Winnerwell Nomad PLUS Double View External Air M-sized Wood Burning Tent Stove – (3” Flue) – Patented Design

With it’s unique patented design of External Air intake from outside the tent, Winnerwell Nomad PLUS Double View External Air brings a new standard of heating efficiency to portable wood burning stoves.

Unlike the front door air intake, an inbuilt external air supply ensures that there’s an unlimited flow of fresh combustion air, which eliminates cold draughts, prevents the stove from consuming the air in tent and the hot air it has created.

A typical stove can consume between 10 to 20 cubic meters of combustion air every hour and an average airtight 4-person tent has a volume of air around 30 to 40 cubic meters, so it’s obvious that a stove operating in an airtight and draught-proof tent could quickly consume up the Oxygen in the tent within 2.5 hours and thus present serious problems for the occupants.

The secondary combustion system helps burn off waste gases to produce more heat and reduce emissions. 7.5kw output

*Please note the Medium External Air Stoves are only compatible with 3” Accessories – available separately :  Winnerwell Triple-wall Heat Protector Chimney for External Air M-sized Stove (3” Flue),  Large flashing kit, Medium opener & seal set

SKU:                          910257

Name:                        Winnerwell Nomad PLUS Double View External Air M-sized Wood Burning Tent Stove

Material:                     AISI304 Stainless Steel

Firebox Dimension:    360(L)mm×200(W)mm×210(H)mm / 14.2(L)in×7.8(W)in×8.3(H)in

Stowed Dimension:    510(L)mm×265(W)mm×300(H)mm / 20.1(L)in×10.4(W)in×11.8(H)in

Assembly Dimension: 510(L)mm×526(W)mm×2120(H)mm / 20.1(L)in×20.7(W)in×83.5(H)in

Pipe Diameters:           3 x 76mm / 3in  +  2 x 73mm / 2.9in

Net Weight:                approx. 11.8kg / 25.9lbs



For portability the sturdy zip fastening Carrying bag (sold separately) is a great accessory.

Weight 12 kg
